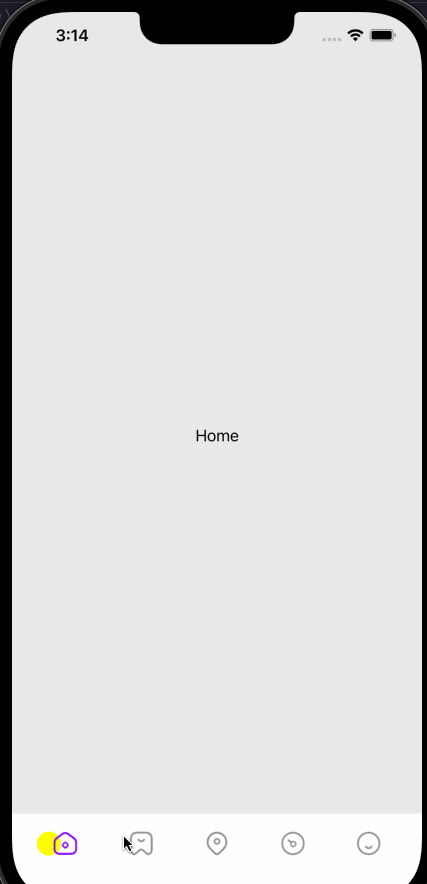

效果图 - 自定tabbar动画效果

思路

1. 使用Table先创建一个静态的tabbar
2. 在自定义tabbar插入一个黄色的圆圈 设置偏移量是tabbar的按钮图标x的10偏移量左右
3. 监听按钮点击去触发去偏移黄色圆圈的y值即可

代码

ContentView.swift

struct ContentView: View {
    // MARK: Hiding Native One
    // 隐藏Native One
    init(){
        UITabBar.appearance().isHidden = true
    }


    @State var currentTab : Tab = .home
    var body: some View {
        VStack(spacing:0){
            TabView(selection:$currentTab) {
                // MARK: Need to Apply BG For Each Tab View
                // 需要为每个标签视图应用BG
                Text("Home")
                    .ApplyBG()
                    .tag(Tab.home)
                Text("Label")
                    .ApplyBG()
                    .tag(Tab.label)
                Text("Position")
                    .ApplyBG()
                    .tag(Tab.position)
                Text("Found")
                    .ApplyBG()
                    .tag(Tab.found)
                Text("My")
                    .ApplyBG()
                    .tag(Tab.my)

            }
            CustomTabbar(currentTab: $currentTab)
        }
    }
}

struct ContentView_Previews: PreviewProvider {
    static var previews: some View {
        ContentView()
    }
}

extension View{
    func ApplyBG() -> some View {
        // infinity 无穷的
        self
            .frame(maxWidth:.infinity,maxHeight: .infinity)
            .background{
                Color("BG")
                .ignoresSafeArea()
            }
    }
}

CustomTabbar.swift

struct CustomTabbar: View {
    @Binding var currentTab : Tab

    // MARK : To Animate Like Curve
    // 动画曲线
    @State var yOffset : CGFloat = 0
    var body: some View {
        GeometryReader{ proxy in
            // 获取整体的宽度
            let width = proxy.size.width
            HStack(spacing:0) {
                ForEach(Tab.allCases,id:\.rawValue){tab in
                    Button {
                        withAnimation(.easeInOut(duration: 0.2)) {
                            currentTab = tab
                            yOffset = -60
                        }
                        withAnimation(.easeInOut(duration: 0.1).delay(0.07)){

                            yOffset = 0
                        }
                    } label: {
                        Image(tab.rawValue)
                            .renderingMode(.template)
                            .resizable()
                            .aspectRatio(contentMode: .fit)
                            .frame(width:30,height: 30)
                            .frame(maxWidth:.infinity)
                            .foregroundColor(currentTab == tab ? Color("Purple"):.gray)

                        // MARK : Little Scaling Effect
                        // 图标一个缩放动画效果
                            .scaleEffect(currentTab == tab && yOffset != 0 ? 1.5 : 1)
                    }

                }
            }
            .frame(maxWidth:.infinity)
            .background(alignment:.leading){
                Circle()
                    .fill(Color("Yellow"))
                    .frame(width:25,height:25)
                    .offset(x:10,y:yOffset)
                    .offset(x:indicatorOffset(witdh: width))
            }

        }
        .frame(height:30)
        .padding(.bottom,10)
        .padding([.horizontal,.top])
    }
    // MARK: Indicator Offset
    // 指示器偏移
    func indicatorOffset(witdh : CGFloat) ->CGFloat {
        let index = CGFloat(getIndex())
        if index == 0 {return 0}

        let buttonWidth = witdh / CGFloat(Tab.allCases.count)
        return index * buttonWidth
    }
    func getIndex() -> Int {
        switch currentTab {
        case .home:
            return 0
        case .label:
            return 1
        case .position:
            return 2
        case .found:
            return 3
        case .my:
            return 4
        }
    }
}

struct CustomTabbar_Previews: PreviewProvider {
    static var previews: some View {
        ContentView()
    }
}

Tab.swift

import SwiftUI

// Mark : Enum For Tabs with Rawvlaue as Asset Image
// 标记:Enum选项卡与Rawvlaue作为资产图像
enum Tab : String ,CaseIterable {
    case home = "Home"
    case label = "Label"
    case position = "Position"
    case found = "Found"
    case my = "My"
}

demo源码

如需看源码，请点击下载!
