php 使用rabbitmq-delayed-message-exchange插件实现延迟功能
1.安装
- 3.6.x下载地址
- 3.7.x下载地址
下载后解压，并将其拷贝至(使用Linux Debian/RPM部署)rabbitmq服务器目录：/usr/local/rabbitmq/plugins中（ windows安装目录\rabbitmq_server-version\plugins ）。
2.启用插件
使用命令rabbitmq-plugins enable rabbitmq_delayed_message_exchang启用插件
rabbitmq-plugins enable rabbitmq_delayed_message_exchang输出如下：
The following plugins have been enabled:
rabbitmq_delayed_message_exchange通过rabbitmq-plugins list查看已安装列表,如下：
[ ] rabbitmq_delayed_message_exchange 20171215-3.6.x3.机制解释
安装插件后会生成新的Exchange类型x-delayed-message，该类型消息支持延迟投递机制,接收到消息后并未立即将消息投递至目标队列中，而是存储在mnesia(一个分布式数据系统)表中，检测消息延迟时间，如达到可投递时间时并将其通过x-delayed-type类型标记的交换机类型投递至目标队列。
4.php实现过程
消费者 delay_consumer2.php:
<?php
//header('Content-Type:text/html;charset=utf8;');
$params = array(
'exchangeName' => 'delayed_exchange_test',
'queueName' => 'delayed_queue_test',
'routeKey' => 'delayed_route_test',
);
$connectConfig = array(
'host' => 'localhost',
'port' => 5672,
'login' => 'guest',
'password' => 'guest',
'vhost' => '/'
);
//var_dump(extension_loaded('amqp'));
//exit();
try {
$conn = new AMQPConnection($connectConfig);
$conn->connect();
if (!$conn->isConnected()) {
//die('Conexiune esuata');
//TODO 记录日志
echo 'rabbit-mq 连接错误:', json_encode($connectConfig);
exit();
}
$channel = new AMQPChannel($conn);
if (!$channel->isConnected()) {
// die('Connection through channel failed');
//TODO 记录日志
echo 'rabbit-mq Connection through channel failed:', json_encode($connectConfig);
exit();
}
$exchange = new AMQPExchange($channel);
//$exchange->setFlags(AMQP_DURABLE);//声明一个已存在的交换器的，如果不存在将抛出异常，这个一般用在consume端
$exchange->setName($params['exchangeName']);
$exchange->setType('x-delayed-message'); //x-delayed-message类型
/*RabbitMQ常用的Exchange Type有三种：fanout、direct、topic。
fanout:把所有发送到该Exchange的消息投递到所有与它绑定的队列中。
direct:把消息投递到那些binding key与routing key完全匹配的队列中。
topic:将消息路由到binding key与routing key模式匹配的队列中。*/
$exchange->setArgument('x-delayed-type','direct');
$exchange->declareExchange();
//$channel->startTransaction();
$queue = new AMQPQueue($channel);
$queue->setName($params['queueName']);
$queue->setFlags(AMQP_DURABLE);
$queue->declareQueue();
//绑定
$queue->bind($params['exchangeName'], $params['routeKey']);
} catch(Exception $e) {
echo $e->getMessage();
exit();
}
function callback(AMQPEnvelope $message) {
global $queue;
if ($message) {
$body = $message->getBody();
echo '接收时间：'.date("Y-m-d H:i:s", time()). PHP_EOL;
echo '接收内容：'.$body . PHP_EOL;
//为了防止接收端在处理消息时down掉，只有在消息处理完成后才发送ack消息
$queue->ack($message->getDeliveryTag());
} else {
echo 'no message' . PHP_EOL;
}
}
//$queue->consume('callback'); 第一种消费方式,但是会阻塞,程序一直会卡在此处
//第二种消费方式,非阻塞
/*$start = time();
while(true)
{
$message = $queue->get();
if(!empty($message))
{
echo $message->getBody();
$queue->ack($message->getDeliveryTag()); //应答，代表该消息已经消费
$end = time();
echo '<br>' . ($end - $start);
exit();
}
else
{
//echo 'message not found' . PHP_EOL;
}
}*/
//注意：这里需要注意的是这个方法：$queue->consume，queue对象有两个方法可用于取消息：consume和get。前者是阻塞的，无消息时会被挂起，适合循环中使用；后者则是非阻塞的，取消息时有则取，无则返回false。
//就是说用了consume之后，会同步阻塞，该程序常驻内存，不能用nginx，apache调用。
$action = '2';
if($action == '1'){
$queue->consume('callback'); //第一种消费方式,但是会阻塞,程序一直会卡在此处
}else{
//第二种消费方式,非阻塞
$start = time();
while(true)
{
$message = $queue->get();
if(!empty($message))
{
echo '接收时间：'.date("Y-m-d H:i:s", time()). PHP_EOL;
echo '接收内容：'.$message->getBody().PHP_EOL;
$queue->ack($message->getDeliveryTag()); //应答，代表该消息已经消费
$end = time();
echo '运行时间：'.($end - $start).'秒'.PHP_EOL;
//exit();
}
else
{
//echo 'message not found' . PHP_EOL;
}
}
}生产者delay_publisher2.php:
<?php
//header('Content-Type:text/html;charset=utf-8;');
$params = array(
'exchangeName' => 'delayed_exchange_test',
'queueName' => 'delayed_queue_test',
'routeKey' => 'delayed_route_test',
);
$connectConfig = array(
'host' => 'localhost',
'port' => 5672,
'login' => 'guest',
'password' => 'guest',
'vhost' => '/'
);
//var_dump(extension_loaded('amqp')); 判断是否加载amqp扩展
//exit();
try {
$conn = new AMQPConnection($connectConfig);
$conn->connect();
if (!$conn->isConnected()) {
//die('Conexiune esuata');
//TODO 记录日志
echo 'rabbit-mq 连接错误:', json_encode($connectConfig);
exit();
}
$channel = new AMQPChannel($conn);
if (!$channel->isConnected()) {
// die('Connection through channel failed');
//TODO 记录日志
echo 'rabbit-mq Connection through channel failed:', json_encode($connectConfig);
exit();
}
$exchange = new AMQPExchange($channel);
$exchange->setName($params['exchangeName']);
$exchange->setType('x-delayed-message'); //x-delayed-message类型
/*RabbitMQ常用的Exchange Type有三种：fanout、direct、topic。
fanout:把所有发送到该Exchange的消息投递到所有与它绑定的队列中。
direct:把消息投递到那些binding key与routing key完全匹配的队列中。
topic:将消息路由到binding key与routing key模式匹配的队列中。*/
$exchange->setArgument('x-delayed-type','direct');
$exchange->declareExchange();
//$channel->startTransaction();
//RabbitMQ不容许声明2个相同名称、配置不同的Queue,否则报错
$queue = new AMQPQueue($channel);
$queue->setName($params['queueName']);
$queue->setFlags(AMQP_DURABLE);
$queue->declareQueue();
//绑定队列和交换机
$queue->bind($params['exchangeName'], $params['routeKey']);
//$channel->commitTransaction();
} catch(Exception $e) {
}
for($i=5;$i>0;$i--){
//生成消息
echo '发送时间：'.date("Y-m-d H:i:s", time()).PHP_EOL;
echo 'i='.$i.'，延迟'.$i.'秒'.PHP_EOL;
$message = json_encode(['order_id'=>time(),'i'=>$i]);
$exchange->publish($message, $params['routeKey'], AMQP_NOPARAM, ['headers'=>['x-delay'=> 1000*$i]]);
sleep(2);
}
$conn->disconnect();对于代码来讲，首先对于消费者核心代码
$exchange->setType('x-delayed-message'); //x-delayed-message类型
$exchange->setArgument('x-delayed-type','direct');生产者核心代码
$exchange = new AMQPExchange($channel);
$exchange->setName($params['exchangeName']);
$exchange->setType('x-delayed-message'); //x-delayed-message类型
$exchange->setArgument('x-delayed-type','direct');
$exchange->declareExchange();使用方法：先运行delay_consumer1.php，再运行delay_publisher1.php

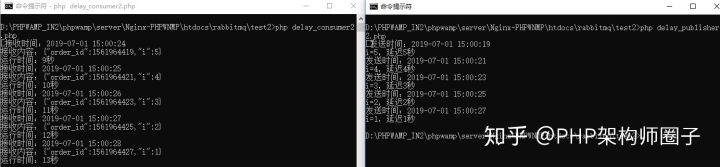

运行效果：
