EMQX

ℹ️ Info:
使用 EMQX
通过 Helm3 在 Kubernetes 上部署 EMQX 4.0 集群 | EMQ
emqx/deploy/charts/emqx at main-v4.4 · emqx/emqx (github.com)
emqx/values.yaml at main-v4.4 · emqx/emqx (github.com)
emqx/emqx-operator: A Kubernetes Operator for EMQ X Broker (github.com)
配置项 | EMQX 文档

EMQX 安装

ℹ️ Info:
即 EMQX 服务器端。

> helm repo add emqx https://repos.emqx.io/charts
"emqx" has been added to your repositories
> helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "emqx" chart repository
Update Complete. ⎈Happy Helming!⎈
> helm search repo emqx
NAME                    CHART VERSION   APP VERSION     DESCRIPTION
emqx/emqx               4.4.0           4.4.0           A Helm chart for EMQ X
emqx/emqx-ee            4.4.1           4.4.1           A Helm chart for EMQ X
emqx/emqx-operator      1.0.1           1.1.2           A Helm chart for EMQX Operator Controller
emqx/kuiper             0.9.0           0.9.0           A lightweight IoT edge analytic software

安装：

vi values.yaml:

replicaCount: 1
image:
  repository: emqx/emqx
  pullPolicy: IfNotPresent

recreatePods: false

podManagementPolicy: Parallel

extraEnv: []

extraEnvFrom: []

extraArgs: []

extraVolumes: []

extraVolumeMounts: []

persistence:
  enabled: true
  size: 8Gi
  storageClass: "local-path"
  accessMode: ReadWriteOnce

resources: {}
  # limits:
  #   cpu: 500m
  #   memory: 512Mi
  # requests:
  #   cpu: 500m
  #   memory: 512Mi

# Containers that run before the creation of EMQ X containers. They can contain utilities or setup scripts.
initContainers: {}
  # - name: mysql-probe
  #   image: alpine
  #   command: ["sh", "-c", "for i in $(seq 1 300); do nc -zvw1 mysql 3306 && exit 0 || sleep 3; done; exit 1"]

## EMQ X configuration item, see the documentation (https://hub.docker.com/r/emqx/emqx)
emqxConfig:
  EMQX_NAME:  "{{ .Release.Name }}"
  ## Cluster discovery by k8s
  EMQX_CLUSTER__DISCOVERY: "k8s"
  EMQX_CLUSTER__K8S__APP_NAME: "{{ .Release.Name }}"
  EMQX_CLUSTER__K8S__APISERVER: "https://kubernetes.default.svc:443"
  EMQX_CLUSTER__K8S__SERVICE_NAME: "{{ .Release.Name }}-headless"
  EMQX_CLUSTER__K8S__NAMESPACE: "{{ .Release.Namespace }}"
  EMQX_CLUSTER__K8S__ADDRESS_TYPE: "hostname"
  EMQX_CLUSTER__K8S__SUFFIX: "svc.cluster.local"

emqxAclConfig: >
  {allow, {user, "dashboard"}, subscribe, ["$SYS/#"]}.
  {allow, {ipaddr, "127.0.0.1"}, pubsub, ["$SYS/#", "#"]}.
  {deny, all, subscribe, ["$SYS/#", {eq, "#"}]}.
  {allow, all}.

emqxLoadedPlugins: >
  {emqx_management, true}.
  {emqx_recon, true}.
  {emqx_retainer, true}.
  {emqx_dashboard, true}.
  {emqx_telemetry, true}.
  {emqx_rule_engine, true}.
  {emqx_bridge_mqtt, false}.

emqxLoadedModules: >
  {emqx_mod_acl_internal, true}.
  {emqx_mod_presence, true}.
  {emqx_mod_trace, false}.
  {emqx_mod_st_statistics, false}.
  {emqx_mod_delayed, false}.
  {emqx_mod_rewrite, false}.
  {emqx_mod_subscription, false}.
  {emqx_mod_topic_metrics, false}.

service:
  type: LoadBalancer
  mqtt: 1883
  mqttssl: 8883
  mgmt: 8081
  ws: 8083
  wss: 8084
  dashboard: 18083

podSecurityContext:
  enabled: true
  fsGroup: 1000
  fsGroupChangePolicy: Always
  runAsUser: 1000
  supplementalGroups:
    - 1000

containerSecurityContext:
  enabled: true
  runAsNonRoot: true
  runAsUser: 1000

helm install emqx emqx/emqx --namespace emqx --create-namespace -f ./values.yaml --wait

安装输出：

NAME: emqx
LAST DEPLOYED: Sat Feb 19 20:48:49 2022
NAMESPACE: emqx
STATUS: deployed
REVISION: 1
TEST SUITE: None

EMQX 验证

安装后查看 EMQX 集群情况：

# kubectl -n emqx get pods
NAME               READY   STATUS    RESTARTS   AGE
svclb-emqx-kbl22   6/6     Running   0          41s
emqx-0             1/1     Running   0          41s

# kubectl -n emqx  exec -it emqx-0 -- emqx_ctl cluster status
Cluster status: #{running_nodes =>
                      ['emqx@emqx-0.emqx-headless.emqx.svc.cluster.local'],
                  stopped_nodes => []}

# kubectl -n emqx get svc
NAME            TYPE           CLUSTER-IP      EXTERNAL-IP      PORT(S)                                                                                      AGE
emqx-headless   ClusterIP      None            <none>           1883/TCP,8883/TCP,8081/TCP,8083/TCP,8084/TCP,18083/TCP,4370/TCP                              86s
emqx            LoadBalancer   10.43.193.192   10.<none> .245   1883:31558/TCP,8883:31122/TCP,8081:31592/TCP,8083:30322/TCP,8084:31095/TCP,18083:32427/TCP   86s

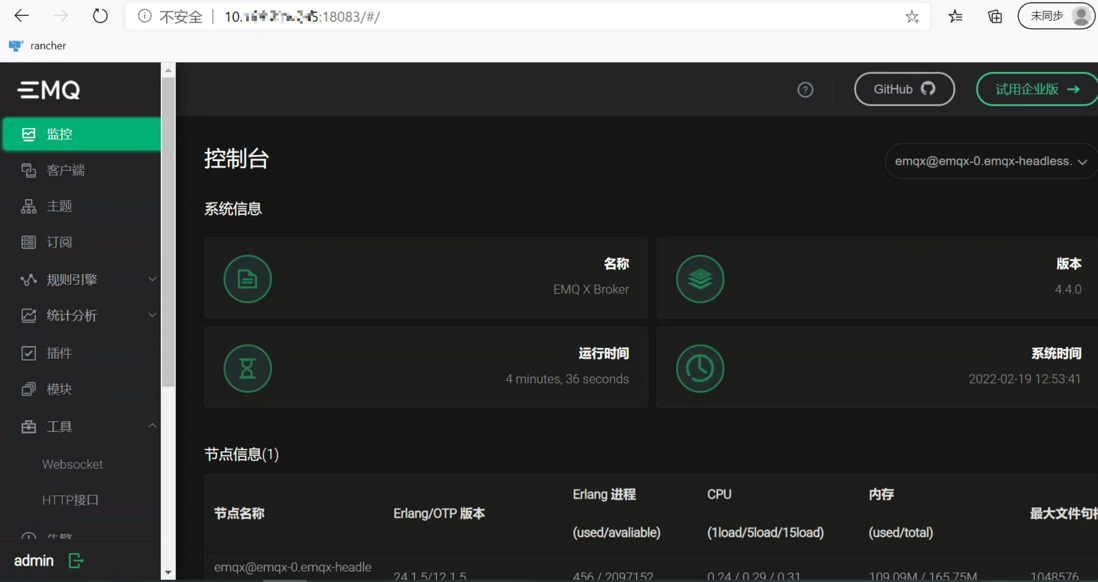

访问控制台：

访问 URL:18083，输入默认用户名：admin，默认密码：public，登陆 EMQX dashboard。

使用 Helm 安装 MQTT 服务器-EMQX

MQTT 消息验证：

可以通过 MQTT X: Cross-platform MQTT 5.0 Desktop Client 连接并进行收发验证。

🎉至此，EMQX（即 MQTT 服务器端）安装完成。

EMQX 卸载

首先通过 Helm 卸载 EMQX 除存储外的所有资源：

helm uninstall emqx --namespace emqx

之后再通过 Rancher UI 或 kubectl 命令删除存储：

kubectl delete -n emqx pvc emqx-data-emqx-0

EMQX Edge

ℹ️ Info:
即 EMQX Edge 端版本
Edge 端资源较小，存储空间等可以适当设置低一点。如：size: 5Gi

部署 EMQX Edge 集群指定 image.repository=emqx/emqx-edge，其他设置与部署 EMQX 集群保持一致

...
image:
  repository: emqx/emqx-edge
...
persistence:
...
  size: 8Gi
...

🎉至此，EMQX Edge（即 MQTT Edge 端 Server) 安装完成。

EMQX Edge 离线安装

通过操作机（可以联网或可以通过代理上网） pull EMQX 的容器镜像到对应的镜像仓库：

ctr -n k8s.io images push --plain-http --platform=linux/arm64/v8 <local-registry>:5000/emqx/emqx-edge:4.4.0

然后正常安装即可：

🔥 Tip:
前提是本地已安装镜像仓库，且本地 docker 或其他容器运行时已经配置本地镜像仓库地址为 <docker.io> 的 mirror

helm install emqx emqx/emqx --namespace emqx --create-namespace -f ./values.yaml --wait

🎉至此，EMQX Edge（即 MQTT Edge 端 Server) 离线方式安装完成。

总结

MQTT

MQTT Server 通过 Helm Chart EMQX 安装，安装于：服务器/Edge 端 K3S 的 emqx namespace;
1. 安装模式：单节点
2. EMQX 版本：4.4.0
3. EMQX 实例：1 个
4. EMQX 数据已持久化，容器数据位于：/opt/emqx/data/mnesia, 持久化后的数据位于：/data/rancher/k3s/storage
EMQX UI 为：<locabalaner-ip>:18083, 账号密码默认为：admin 和 public
MQTT 地址为：<locabalaner-ip>:1883
