Spring Cloud Gateway中的权重路由

Stella981
• 阅读 899

摘要:本文主要通过运用Spring Cloud Gateway的WeightRoutePredicateFactory对URL进行权重路由。

1.权重路由

1.1 权重路由使用场景

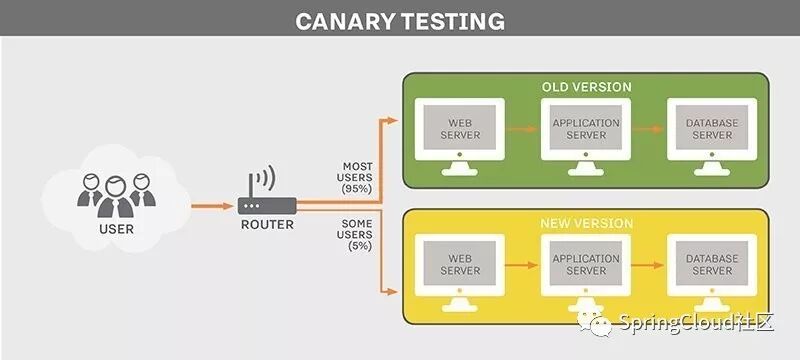

在开发或者测试的时候,或者线上发布,线上服务多版本控制的时候,需要对服务提供权重路由,最常见的使用就是,一个服务有两个版本,旧版本V1,新版本v2。在线上灰度的时候,需要通过网关动态实时推送,路由权重信息。比如95%的流量走服务v1版本,5%的流量走服务v2版本。

Spring Cloud Gateway中的权重路由

issue: The Spring Cloud Gateway issue of Allow Rolling Deployments https://github.com/spring-cloud/spring-cloud-gateway/issues/67

1.2 Spring Cloud Gateway权重路由原理

Spring Cloud Gateway中提供了 org.springframework.cloud.gateway.handler.predicate.WeightRoutePredicateFactory去实现根据分组设置权重进行路由,因此使用起来相对比较简单,有兴趣的可以debug阅读源码。

  1. public class WeightRoutePredicateFactory extends AbstractRoutePredicateFactory<WeightConfig> implements ApplicationEventPublisherAware {

  2. private static final Log log = LogFactory.getLog(WeightRoutePredicateFactory.class);

  3. public static final String GROUP_KEY = WeightConfig.CONFIG_PREFIX + ".group";

  4. public static final String WEIGHT_KEY = WeightConfig.CONFIG_PREFIX + ".weight";

  5. private ApplicationEventPublisher publisher;

  6. public WeightRoutePredicateFactory() {

  7. super(WeightConfig.class);

  8. }

  9. [@Override](https://my.oschina.net/u/1162528)

  10. public void setApplicationEventPublisher(ApplicationEventPublisher publisher) {

  11. this.publisher = publisher;

  12. }

  13. [@Override](https://my.oschina.net/u/1162528)

  14. public List<String> shortcutFieldOrder() {

  15. return Arrays.asList(GROUP_KEY, WEIGHT_KEY);

  16. }

  17. [@Override](https://my.oschina.net/u/1162528)

  18. public String shortcutFieldPrefix() {

  19. return WeightConfig.CONFIG_PREFIX;

  20. }

  21. [@Override](https://my.oschina.net/u/1162528)

  22. public void beforeApply(WeightConfig config) {

  23. if (publisher != null) {

  24. publisher.publishEvent(new WeightDefinedEvent(this, config));

  25. }

  26. }

  27. [@Override](https://my.oschina.net/u/1162528)

  28. public Predicate<ServerWebExchange> apply(WeightConfig config) {

  29. return exchange -> {

  30. Map<String, String> weights = exchange.getAttributeOrDefault(WEIGHT_ATTR,

  31. Collections.emptyMap());

  32. String routeId = exchange.getAttribute(GATEWAY_PREDICATE_ROUTE_ATTR);

  33. // all calculations and comparison against random num happened in

  34. // WeightCalculatorWebFilter

  35. String group = config.getGroup();

  36. if (weights.containsKey(group)) {

  37. String chosenRoute = weights.get(group);

  38. if (log.isTraceEnabled()) {

  39. log.trace("in group weight: "+ group + ", current route: " + routeId +", chosen route: " + chosenRoute);

  40. }

  41. return routeId.equals(chosenRoute);

  42. }

  43. return false;

  44. };

  45. }

  46. }

2.Spring Cloud Gateway中的权重路由案例

2.1 案例代码地址

https://github.com/SoftwareKing/sc-gateway/tree/master/ch4

2.2 Spring Cloud Gateway Server说明

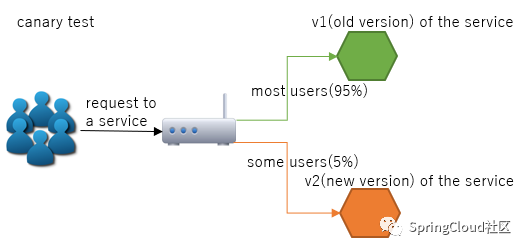

Spring Cloud Gateway will dispatch 95% of the requests to version 1 and 5% of the traffic to version 2 of a specified service, as shown by the following figure.

Spring Cloud Gateway中的权重路由

我们通过在Spring Cloud Gateway中会配置不同的权重信息到不同URL上,Spring Cloud Gateway会根据我们配置的路由权重信息,将请求分发到不同的源服务组,权重信息如ch4/ch4-gateway中的application.yml所示,主要配置信息如下。

  1. spring:

  2. application:

  3. name: ch4-gateway

  4. cloud:

  5. gateway:

  6. routes:

  7. - id: service1_v1

  8. uri: http://localhost:8081/v1

  9. predicates:

  10. - Path=/test

  11. - Weight=service1, 95

  12. - id: service1_v2

  13. uri: http://localhost:8081/v2

  14. predicates:

  15. - Path=/test

  16. - Weight=service1, 5

Weight=service1, 95,Weight=service1, 5就是路由的权重信息。

2.3 源服务

源服务在本案例中源服务如ch4-service-provider所示,主要提提供Gateway Server权重路由对应的后端源服务。因为比较简单因此不做详细说明,主要代码如下所示。

  1. package org.xujin.sc.service;

  2. import org.springframework.web.bind.annotation.RequestMapping;

  3. import org.springframework.web.bind.annotation.RestController;

  4. import reactor.core.publisher.Mono;

  5. @RestController

  6. public class ServiceController {

  7. @RequestMapping(value = "/v1", produces = "text/plain;charset=UTF-8")

  8. public Mono<String> v1() {

  9. return Mono.just("v1");

  10. }

  11. @RequestMapping(value = "/v2", produces = "text/plain;charset=UTF-8")

  12. public Mono<String> v2() {

  13. return Mono.just("v2");

  14. }

  15. }

2.4 测试

分别启动ch4-gateway,ch4-service-provider进行访问:http://localhost:8080/test 测试,发现会根据所设权重进行路由。
